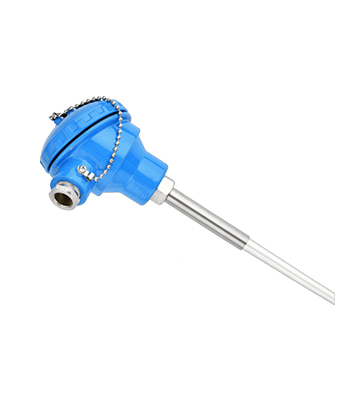

THERMOCUPLE WITH HIGH TEMP. CERAMIC TUBE - TC7




Element    :   Type J (Fe-CuNi)

Accuracy    :   Standard to ISA & ANSI MC96.1

No. of sensors    :   Simplex

Hot junction    :   Ungrounded

Sheath material    :   AISI 316 SS

Element length :    30 mm

Lead wire length :    3000 mm

Lead wire Type :    PTFE / PTFE / SS Wire Braided Lead wires

Sensor mounting :    Straight

Process connection :    Bayonet connector, Ø12 mm (Spring loaded)
