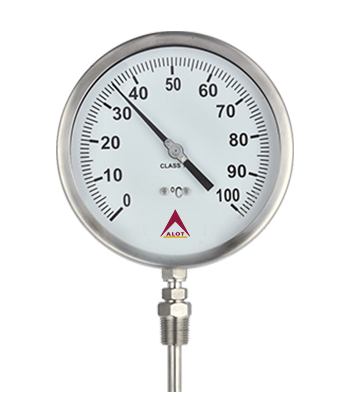

Thermometer Inert Gas System Rigid Stem - TGS
SPECIFICATIONS :
| Dial size | 100/ 125/150/ 250 mm |
|---|---|
| Range | As per table |
| Mounting | Direct, Bottom Connection |
| Stem Size | 10 mm |
| Ingress protection | IP 65 |
| Stem Length | 300 mm |
| Process Connection | 1/2” NPT (M) Adjustable |
MATERIAL :
| Sensing element | Inert Gas Filled |
|---|---|
| Case & Bezel | AISI 304 SS (Bayonet Type) |
| Stem | AISI 316 SS |
| Process Connection Material | AISI 316 SS |
| Capillary Type | S.S. Armour |
| Dial | Aluminum, black graduation on white background |
| Pointer | Micrometer zero adjustable, aluminum, black powder coated |
| Gaskets | Neoprene |
| Window | Sheet / Safety glass |
PARAMETERS :
| Accuracy | ±1.0% |
|---|---|
| Ambient temperature | -25ºC to 65ºC |
| Temperature | -50…+70ºC without liquid dampening -20… +60ºC with liquid dampening |
| Over Range Limits | 110% Full Scale |
| Pressure | 15 bar (Without thermowell) |
| Weld joints | TIG argon arc welding |
GLYCERINE FILLED :
| Gaskets & Filling plugs | Neoprene |
|---|---|
| Dampening liquids | Glycerine 99.7% (-20ºC to 65ºC) [Upto range 100ºC] |
| Window | Shatterproof safety glass |
SILICON FILLED :
| Gaskets & Filling plugs | NBR |
|---|---|
| Dampening liquids | Silicon oil [upto range 200ºC] |
| Window | Shatterproof safety glass |
