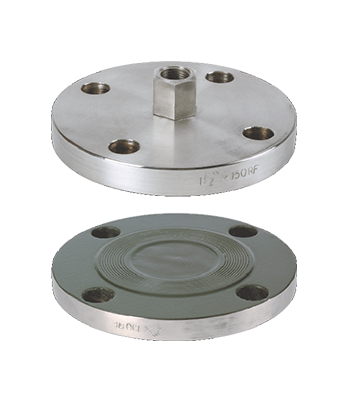

SEALED DIRECT FLANGE FLUSH – DFF




Range Type    :   -1…0 bar to 0...250 bar

Chamber / Flange material    :   AISI 316 SS

Diaphragm    :   AISI 316L SS

Instrument connection    :   1/2" NPT (F)

Sealing fluid    :   Silicon DC 200 (-40…205°C)

Process connection    :   1½" 150# as per ANSI B16.5

Flange facing type    :   Raised face
