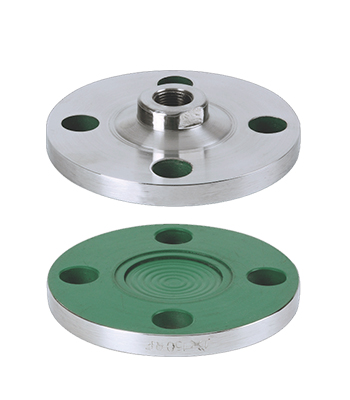

SEALED DIRECT FLANGE INSERT– DFI




Range Type    :   -1…0 bar to 0…250 bar

Top chamber material    :   AISI to 304 SS

Diaphragm    :   AISI 316L SS

Flange material    :   AISI 316 SS

Instrument connection    :   1/2" NPT (F)

Sealing fluid    :   Silicon DC 200 (-40…205°C)

Process connection    :   1½" 150# as per ANSI B16.5

Flange facing type    :   Raised face
