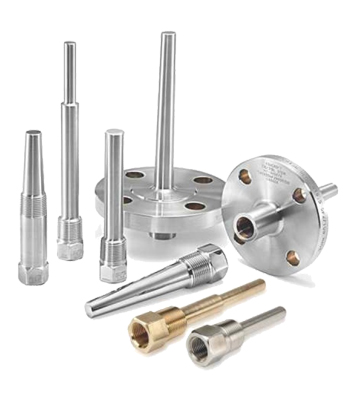

Thermowells - TBT, TFT, TBF, TFF, TFS, TBV

Construction Straight/ Tapper / Steeped
Material AISI 304SS/ 316SS / Monel / Brass
Process connection 1/2" to 2"
Immersion Length 50mm to 1000mm
Construction Straight
Material AISI 304SS/ AISI 316SS / Monel
Process connection 1/2" to 2"
Immersion Length 50mm to 1000mm
Construction Straight/ Tapper / Steeped
Material AISI 304SS/ AISI 316SS / Monel
Process connection 1/2" to 4" Flanges sizes
Immersion Length 50mm to 1000mm
Construction Straight
Material AISI 304SS/ AISI 316SS / Monel
Process connection 1/2" to 4" Flanges sizes
Immersion Length 50mm to 1000mm
Construction Straight/ Tapper / Steeped
Material AISI 304SS/ AISI 316SS / Monel
Process connection 14mm to 56mm
Immersion Length 50mm to 300mm
Construction Straight/ Tapper / Steeped
Material AISI 304SS/ AISI 316SS / Monel
Process connection 3/4", 1-1/2", 2" RF diameter
Immersion Length 50mm to 1000mm
