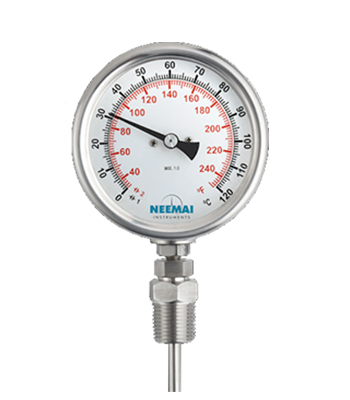

S.S.BI-METAL THERMOMETER with elbow – BBB     img


Dial size    :   80/100/150 mm
Range   :   As per table
Mounting   :   Direct Back to Bottom
Stem Size   :   6 mm
Ingress protection:   :   IP 65
Zero Adjustment    :   External “0” Adjustable
Stem Length :   150 mm
Process Connection :   1/2” NPT/BSP (M) Adjustable





Sensing element :   Coiled Bimetal Strip
Case & Bezel    :   AISI 304 SS
Stem    :   AISI 316 SS
Process Connection Material    :   AISI 316 SS
Dial   :   Aluminum, black graduation on white background
Pointer   :   Micrometer zero adjustable, aluminum, black powder coated
Gaskets   :   Neoprene
Window   :   Sheet glass

Accuracy   :   ±1.0%
Ambient temperature   :   Maximum 65ºC
Over Range Limits   :   110% Full Scale
Pressure   :   15 bar (Without thermowell)
Weld joints   :   TIG argon arc welding
