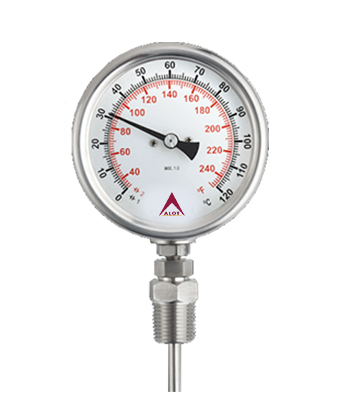

BI-METAL THERMOMETER – BCB     img


Dial size    :   63/80/100/ 150 mm
Range   :   As per table
Mounting   :   Direct, Bottom Connection
Stem Size   :   6/8/10 mm
Ingress protection   :   IP 65
Stem Length    :   300 mm
Process Connection :   1/2” NPT/BSP (M) Fixed







Sensing element    :   Coiled Bimetal Strip
Case & Bezel   :   AISI 304 SS (Bayonet Type)
Stem   :   AISI 316 SS
Process Connection Material    :   AISI 316 SS
Dial   :   Aluminum, black graduation on white background
Pointer    :   Zero adjustable, aluminum, black powder coated
Gaskets   :   Neoprene
Window   :   Sheet glass

Accuracy   :   ±2%
Ambient temperature   :   -25…+65ºC
Over Range Limits   :   110% Full Scale
Pressure   :   15 bar (Without thermowell)
Weld joints   :   TIG argon arc welding


Gaskets & Filling plugs    :   Neoprene
Dampening liquids   :   Glycerine 99.7% (-20ºC to 65ºC) [Upto range 100ºC]
Window   :   Shatterproof safety glass

Gaskets & Filling plugs   :   NBR
Dampening liquids   :   Silicon oil [upto range 200ºC]
Window   :   Shatterproof safety glass
