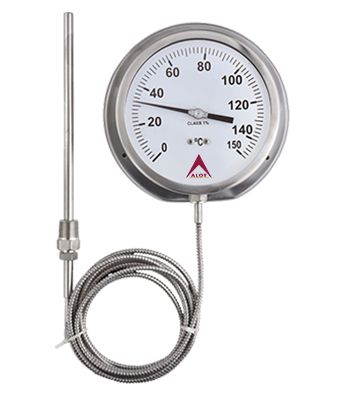

INERT GAS SYSTEM CAPILLARY TYPE – TGC     img


Dial size    :   100/ 150/ 250 mm
Range   :   As per table
Mounting   :   Direct, Bottom Connection
Stem Size   :   10/12 mm
Ingress protection:   :   IP 65
Stem Length   :   300 mm
Process Connection :   1/2” NPT/BSP (M) Adjustable






Sensing element   :   Inert Gas Filled
Case & Bezel   :   AISI 304 SS (Bayonet Type)
Stem   :   AISI 316 SS
Process Connection Material   :   AISI 316 SS
Dial   :   Aluminum, black graduation on white background
Pointer   :   Micro-zero adjustable, aluminum, black powder coated
Gaskets   :   Neoprene
Window   :   Sheet / Safety glass

Accuracy   :   ±1.0%
Ambient temperature   :   -25ºC to 65ºC
Temperature   :   -50…+70ºC without liquid dampening
      -20… +60ºC with liquid dampening
Over Range Limits   :   110% Full Scale
Pressure   :   15 bar (Without thermowell)
Weld joints   :   TIG argon arc welding


Gaskets & Filling plugs    :   Neoprene
Dampening liquids   :   Glycerine 99.7% (-20ºC to 65ºC) [Upto range 100ºC]
Window    :   Shatterproof safety glass


Gaskets & Filling plugs   :   NBR
Dampening liquids    :   Silicon oil [upto range 200ºC]
Window   :   Shatterproof safety glass
