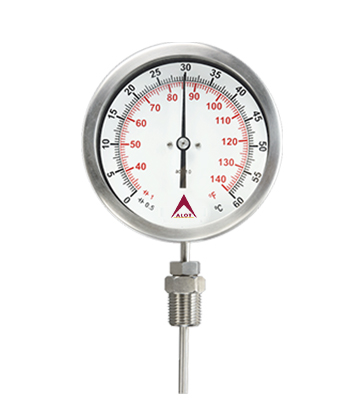

Bi-Metal Thermometer Std. Bottom

Dial size 63/80/100/ 150 mm
Range As per table
Mounting Direct, Bottom Connection
Stem Size 6/8/10 mm
Ingress protection IP 65
Stem Length 300 mm
Process Connection Type Adjustable Connection
Process Connection 1/2” NPT/BSP (M) Fixed
Sensing element Coiled Bimetal Strip
Case & Bezel AISI 304 SS
Stem AISI 316 SS
Process Connection Material AISI 316 SS
Dial Aluminum, black graduation on white background
Pointer Zero adjustable, aluminum, black powder coated
Gaskets Neoprene
Window Sheet Glass
Accuracy ±2%
Ambient temperature -25ºC to 65ºC
Over Range Limits 110% Full Scale
Pressure 15 bar (Without thermowell)
Weld joints TIG argon arc welding
Gaskets & Filling plugs Neoprene
Dampening liquids Glycerine 99.7% (-20ºC to 65ºC) [Upto range 100ºC]
Window Shatterproof safety glass
Gaskets & Filling plugs NBR
Dampening liquids Silicon oil [upto range 200ºC]
Window Shatterproof safety glass
